Pulse magnetic field tester PFM S9

Product overview

The pulsed magnetic field is generated by lightning strikes on buildings and other structures (including antennas, grounding bodies and grounding grids), as well as the initial transient of faults in low-voltage, medium voltage and high-voltage power systems. It can also be generated when the disconnector in the high-voltage substation is connected with the high-voltage bus. The product meets the requirements of IEC 61000-4-9 and gb/t 17626.9 new standards.

Data download

Product video

Product features

? 7 inch color touch screen;
? Support multi language, convenient for different users;
? Built in environment automatic detection program, automatically detect the test environment and remind users;
? Rs232/usb interface, optional PC control software operation.

Product parameters

Product model

magnetic field intensity

Pulse waveform

Surge polarity

time interval

Coil size

Operation mode

Working power supply

ambient temperature
PFM S9

100a/m~3000a/m continuously adjustable

6.4/16us

Positive / negative, alternating positive and negative

1~9999s

1m*1m

Manual, automatic

AC220V 50/60Hz

15℃~35℃

Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

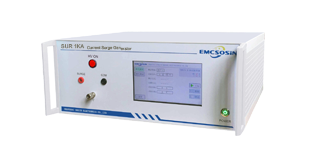

Impulse current generator sur 1ka

Model：SUR 1KA

The intelligent lightning surge generator sur 1ka is used to conduct surge impact tests on surge protection devices such as arrester resistors, varistors, discharge tubes, SPD, TVs, etc. the product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with national standards and IEC standards. The product has passed the ministerial appraisal, and its main technical performance is in the leading position in China, reaching the advanced technology of similar international products.

Learn more

Impulse current generator sur 20KA

Model：SUR 20KA

The lightning surge generator sur 20KA is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more
