Product features

• ? 7-inch touch screen operation;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in international standard grade parameters, easy and fast operation;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Product model


  Output voltage us


  Input impedance ri


  Pulse polarity


  Pulse width TD


  Rising edge tr


  Pulse frequency


  Interpulse interval T1


  Pulse train length T4


  Burst interval T5


  Output mode


  Coupling / decoupling network


  Test time


  Equipment power supply


  ambient temperature

• RV P3


  5~±100ov


  50Q


  Positive and negative


  150ns±50ns


  5ns±1.5ns


  1khz~300khz (0.5khz/ step) 0.5KHz; Standard recommendation: 10kHz


  100us


  1ms ~ 100ms


  0.02s ~99.99s


  Coaxial output, built-in coupling / decoupling network output


  Built in, 25A


  1 ~9999s


  AC220V±10%50/60Hz


  15C~35C

Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

Single phase 8Kv lightning surge generator sur S8

Model：SUR S8

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

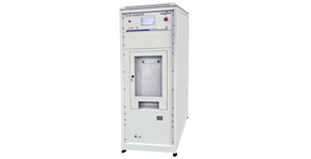

Impulse current generator sur 20KA

Model：SUR 20KA

The lightning surge generator sur 20KA is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.
