Product features

• ? ESD 1700 electrostatic discharge test bench is configured for electrostatic discharge immunity test environment,

• ? It is designed in strict accordance with the requirements of IEC61000-4-2 and gb/t17626.2 new standards.

• ? The product has the advantages of flexible assembly, beautiful and firm appearance, etc.

Product parameters

• Product model


  Specifications


  Test bench


  Reference ground plate


  Horizontal coupling plate


  Vertical coupling plate


  Insulating liner


  Resistance cable

• ESD 1700


  Desktop device configuration


  1700*900*800mm


  2700*1800*1.5mm


  1600*800*1.5mm


  500*500*1.5mm


  1000*800*0.5mm


  2*470KQ

Product recommendation

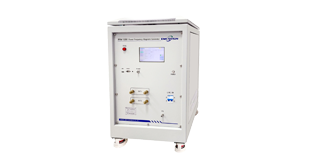

Power frequency magnetic field generator PFM 1200

Model：PFM 1200

The power frequency magnetic field is generated by the power frequency current in the conductor, or a very small amount of it is generated by other accessories (such as the leakage flux of the transformer). Power frequency magnetic field may affect the reliable operation of equipment and system. The power frequency magnetic field generator is used to evaluate the performance of household, commercial and industrial electrical and electronic equipment in power frequency (continuous and short-time) magnetic field. The products meet the requirements of new standards such as iec61000-4-8 and gb/t17626.8.

Learn more

Single phase 6kV lightning surge generator sur S6

Model：SUR S6

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

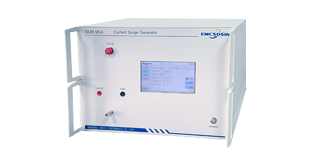

Impulse current generator sur 6ka

Model：SUR 6KA

The lightning surge generator sur 6ka is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more
