Program overview

In recent years, with the continuous development and wide application of electronic technology, the technology of hand-held electric tools is becoming more and more mature. While pursuing excellent performance, countries have higher and higher requirements for its electromagnetic compatibility, the corresponding standards are also constantly updated and improved, and the threshold of product certification and recognition is higher and higher. It is necessary to study the electromagnetic interference of electric tools and put forward some suppression methods.

Application document

Main criteria

CISPR 14-1/GB 4343.1

CISPR 14-2/GB 4343.2

IEC 61000-3-2/GB 17625.1

IEC 61000-3-3/GB 17625.2
《Electromagnetic compatibility requirements for household appliances, electric tools and similar appliances Part 1: emission》

《Electromagnetic compatibility requirements for household appliances, electric tools and similar appliances Part 2: immunity》

《Electromagnetic compatibility requirements for household appliances, electric tools and similar appliances Part 2: immunity》

《Electromagnetic compatibility limit limits the voltage change, voltage fluctuation and flicker of equipment with rated current ≤ 16A per phase and unconditionally connected in the public low-voltage power supply system》

Test items

EMS test item 6

? Electrostatic discharge immunity, contact discharge 4KV, air discharge 8Kv
? RF electric field radiation immunity, maximum test field strength 3v/m
? Electrical fast transient burst immunity, maximum test level 1kV
? Surge (impact) immunity, maximum test level 2KV
? RF conducted disturbance immunity, maximum test level 3V
? Voltage sag, short-time interruption and voltage variation immunity, according to iec61000-4-11
? The low-frequency immunity of harmonic, inter harmonic and grid signals at the AC power port shall be in accordance with iec61000-4-13

EMS test item 6

? Conducted disturbance voltage, 150khz-30mhz, qp/av
? Disturbance power, 30mhz-300mhz, qp/av
? Click sound, 150khz-30mhz, QP
? Radiation disturbance (toys only), 30mhz-1ghz, QP
? Harmonic current emission test according to IEC 61000-3-2
? Voltage fluctuation and flicker test according to IEC 61000-3-3

Related products

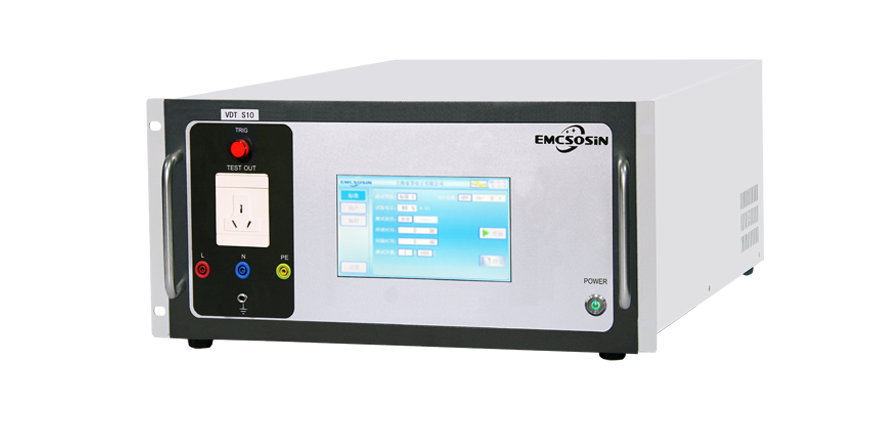

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

Single phase 8Kv lightning surge generator sur S8

Model：SUR S8

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

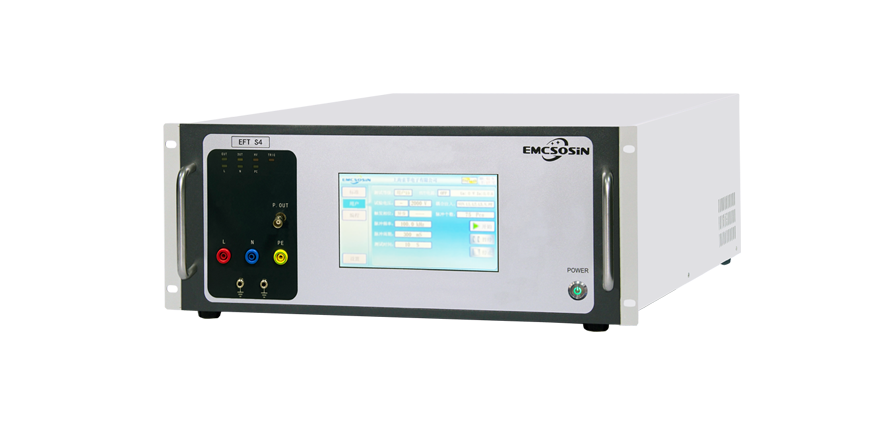

Single phase 5kV burst generator EFT S4

Model：EFT S4

In the circuit, such as from the switching transient process (cutting off inductive loads, bouncing relay contacts, etc.), it will usually interfere with other electrical and electronic equipment in the same circuit. This kind of interference is characterized by high amplitude, short rise time, high repetition rate and low energy. Clusters of narrow pulses can charge the junction capacitance of semiconductor devices, which may cause circuit or equipment errors when accumulated to a certain extent. The burst generator determines a common reproducible evaluation basis for evaluating the performance of power supply ports, signal, control and grounding ports of electrical and electronic equipment when disturbed by electrical fast transient bursts. The products meet the requirements of new standards such as iec61000-4-4, en60100-4-4 and gb/t17626.4.

Learn more
